Distribution Cabinets

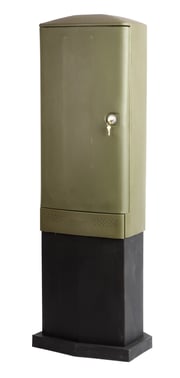

The CAB10 is a double skinned cabinet providing an attractive and robust housing for LV electrical equipment. The door is a ‘slam shut’ and locks on closing making for a safer cabinet. The inner and outer ventilation holes are not aligned ensuring there is no access to the live area. The bottom sill is easily detachable to assist access for jointing even when the base is installed.

The double skinned outer, two 5mm walls of high grade polyethene, make for a tough secure unit and particularly suitable for high-traffic environments.

MAXIMUM FUSE CAPACITY:

• 2x 400A 3ph DIN and 3x 160A 3ph DIN (using adapter plates in the 100 slots)
• or 3x 250A 3ph DIN and 1x 160A 3ph DIN
• or 7x 160A 3ph DIN (Verticals) (using adapter plates in the 100 slots)

STANDARD FEATURES:

• Is pre-installed with a PVC mounting panel affording various mounting options
• Is pre-installed with a large 8 way plate neutral bar
• Door is 'slam shut' and locks on closing and the inner and outer ventilation holes are not aligned, deterring access to live area.
• If damaged, the door can be replaced separately avoiding costly and time-consuming reinstalls.
• The bottom sill is easily detachable to assist access for jointing even when the cabinet is installed.

OPTIONAL FEATURES:

• Optional Gear Tray - PVC plate for sitting unmounted equipment on
• Locking cylinder can be changed to network requirements
• The CAB10 can be ground buried using the optional CAB10 Base or mounted directly to a concrete pad.

See Measurements and SKUs

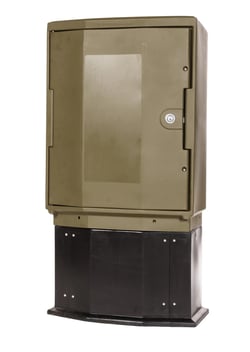

The CAB60 Is designed to house LV electrical equipment such as meters, fuses and disconnects and provides protection from weather and environmental conditions.

Designed as a robust 6 way cabinet due to high demand, this cabinet provides an attractive and robust housing for LV electrical equipment.  Door is 'slam shut' and locks on closing and can be purchased in both left-hand-opening and right-hand-opening. If damaged, the door can be replaced separately avoiding costly and time-consuming reinstalls.

MAXIMUM FUSE CAPACITY:

• 6x 400 3ph Din OR 250A Din
• or 2x 400 3ph DIN and 8 x 160A 3ph Din (using adapter plates in 100 slots)
• or 3x 250 3ph DIN and 6 x 160A 3ph Din (using adapter plates in 100 slots)
• or 12x 160 3ph DIN (using adapter plates in the 100 slots)

STANDARD FEATURES:

• Is pre-installed with a PVC mounting panel affording various mounting options
• Is pre-installed with a large neutral plate bar.

OPTIONAL FEATURES:

• Locking cylinder can be changed to network requirements
• Your choice of Bus Bar mountings, we commonly fit Jean Mueller bus bar racks for mounting vertical disconnects, however can fit other brands to suit your requirements.

See Measurements and SKUs
