Cabinets & Link Pillars

Cabinets and Link Pillars that ensure cost-effective and efficient maintenance in New Zealand.

Cabinet and Link Pillars NZ

Built for high traffic

Engineered with the demands of high traffic environments in mind, the product range stands strong against wear and tear.

Robust

With a durable body that has been meticulously designed to protect network and electrical equipment without compromising style.

Sustainable

Fully Recyclable with our GYRO-CYCLED Program, designed to divert waste from landfill and the further use of virgin materials

Versatile

Adaptable to cater for many different types of electronic equipment and configurations.

Graffiti Resistant

Our Range

Cabinet For Electrical Equipment

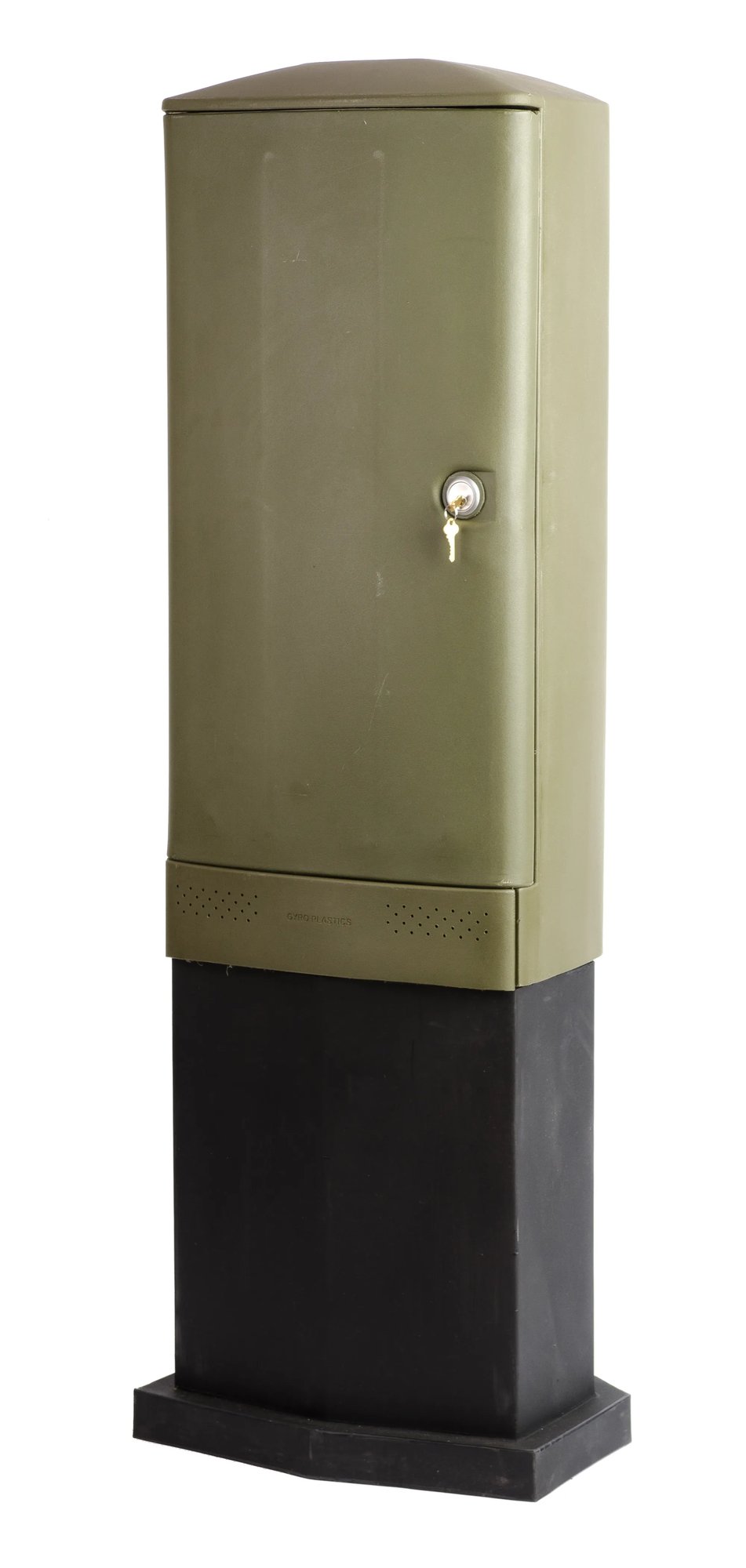

CAB10 - 3.5 Way Cabinet

The CAB10 Is designed to house LV electrical equipment such as meters, fuses and disconnects and provides protection from weather and environmental conditions.

This double skinned cabinet provides an attractive and robust housing for LV electrical equipment.  Its sleek design, strength, graffiti resistance, and plastic construction make it particularly suitable for high traffic environments and the double skinned outer, two 5mm walls of high grade polyethene, make for a tough secure unit. The bottom sill is easily detachable to assist access for jointing even when the cabinet is installed. Door is 'slam shut' and locks on closing and the inner and outer ventilation holes are not aligned, deterring access to live area. If damaged, the door can be replaced separately avoiding costly and time-consuming reinstalls. The CAB10 can be ground buried using the optional base or mounted directly to a concrete pad.

MAXIMUM FUSE CAPACITY:

  • 2x 400A 3ph DIN and 3x 160A 3ph DIN (using adapter plate in the 100 slot)
  • or 3x 250A 3ph DIN and 1x 160A 3ph DIN
  • or 7x 160A 3ph DIN (Verticals) (using adapter plates in the 100 slot)

STANDARD FEATURES:

  • Is pre-installed with a PVC mounting panel affording various mounting options
  • Is pre-installed with a large 8 way plate neutral bar

OPTIONAL FEATURES:

  • Optional Base- There is an optional plastic base for ground burial or it can be bolted directly onto a concrete pad
  • Optional Gear Tray - PVC plate for sitting unmounted equipment on
  • The deadlock can be customized with a rim cylinder of your choice

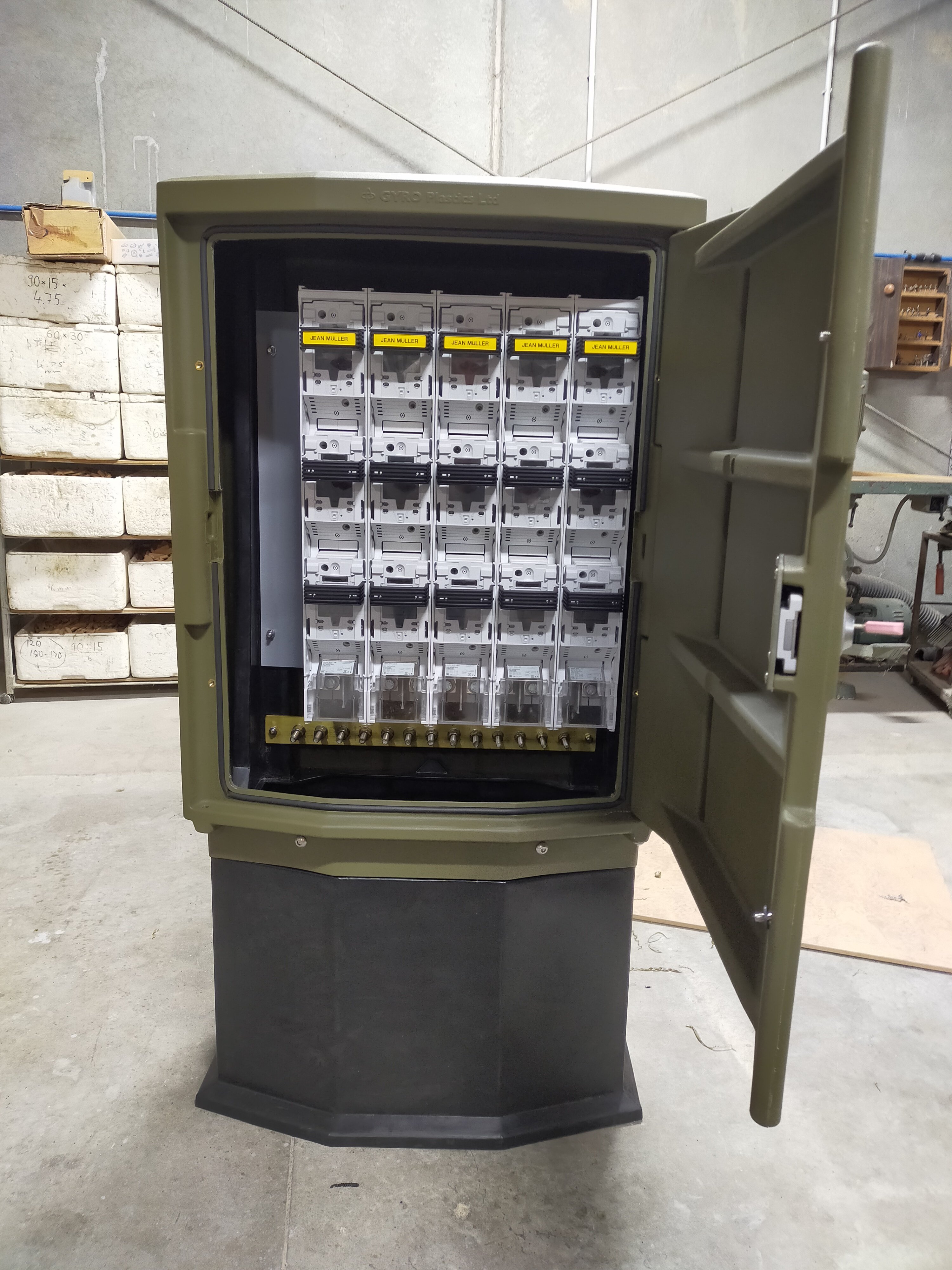

  • Commonly fitted with Jean Mueller 3.5 way bus bar rack for mounting vertical disconnects, however we can fit other brands to suit your requirements.
  • 3.5 way Jean Muller bus bar design: View Design Here.

See measurements and part numbers

Doubled Skinned Cabinet for Electrical Equipment

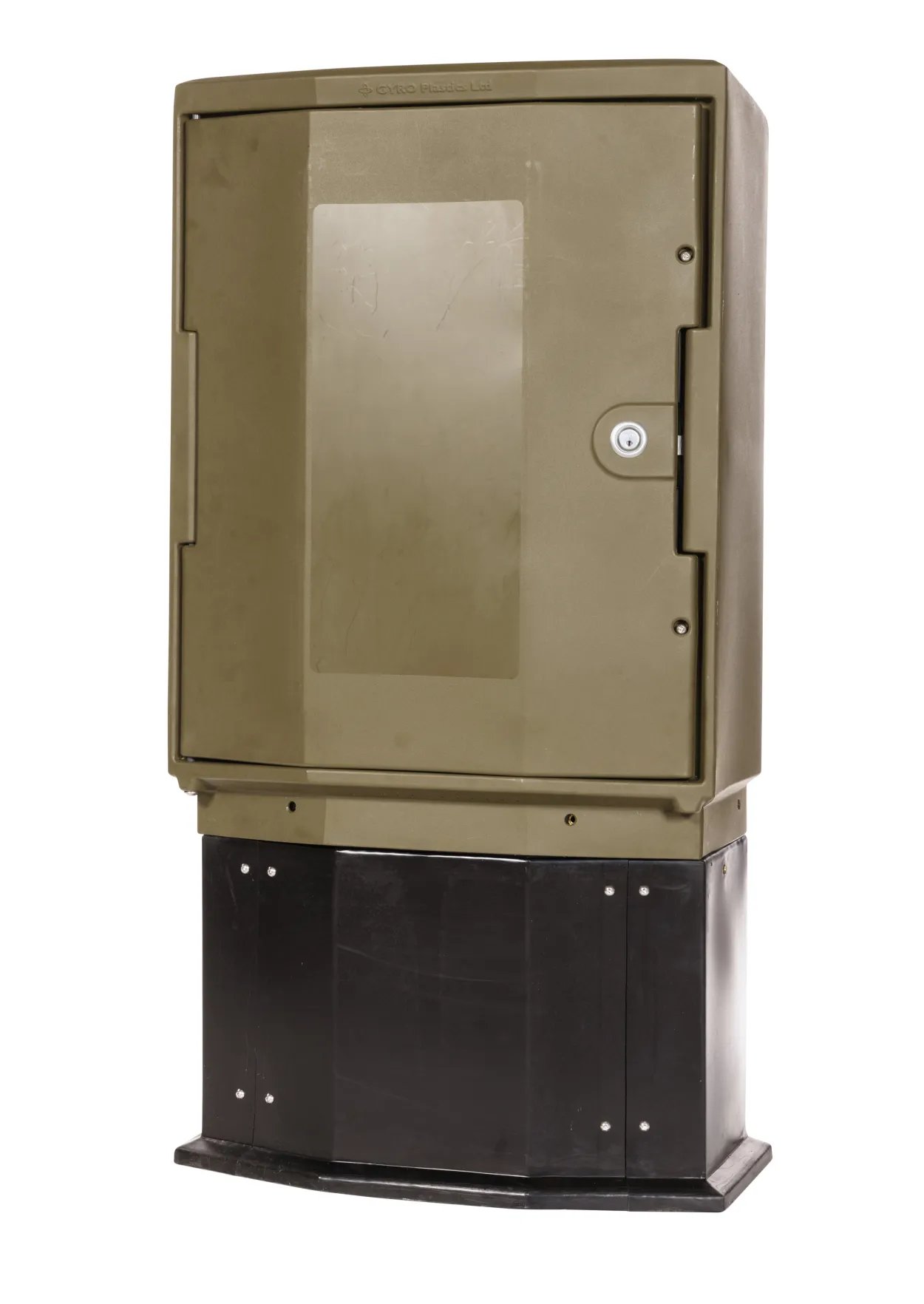

CAB60 - 6 Way Cabinet

The CAB60 Is designed to house LV electrical equipment such as meters, fuses and disconnects and provides protection from weather and environmental conditions. These can be customised to your network requirements.

This double skinned cabinet provides an attractive and robust housing for LV electrical equipment.  Its sleek design, strength, graffiti resistance, and plastic construction make it particularly suitable for high traffic environments and the double skinned outer, two 5mm walls of high grade polyethene, make for a tough secure unit. The bottom sill is easily detachable to assist access for jointing even when the cabinet is installed. Door is 'slam shut' and locks on closing and the inner and outer ventilation holes are not aligned, deterring access to live area. If damaged, the door can be replaced separately avoiding costly and time-consuming reinstalls.

MAXIMUM FUSE CAPACITY:

  • 6x 400 3ph Din OR 250A Din
  • or 2x 400 3ph DIN and 8 x 160A 3ph Din (using adapter plates in 100 slots)
  • or 3x 250 3ph DIN and 6 x 160A 3ph Din (using adapter plates in 100 slots)
  • or 12x 160 3ph DIN (using adapter plates in the 100 slots)

STANDARD FEATURES:

  • Is pre-installed with a PVC mounting panel affording various mounting options
  • Is pre-installed with a large 8 way plate neutral bar

OPTIONAL FEATURES:

  • Optional Gear Tray - PVC plate for sitting unmounted equipment on
  • Locking cylinder can be changed to network requirements
  • Your choice of Bus Bar mountings, we commonly fit Jean Mueller bus bar racks for mounting vertical disconnects, however can fit other brands to suit your requirements.

See measurements and part numbers

e6000-6-way-pillar

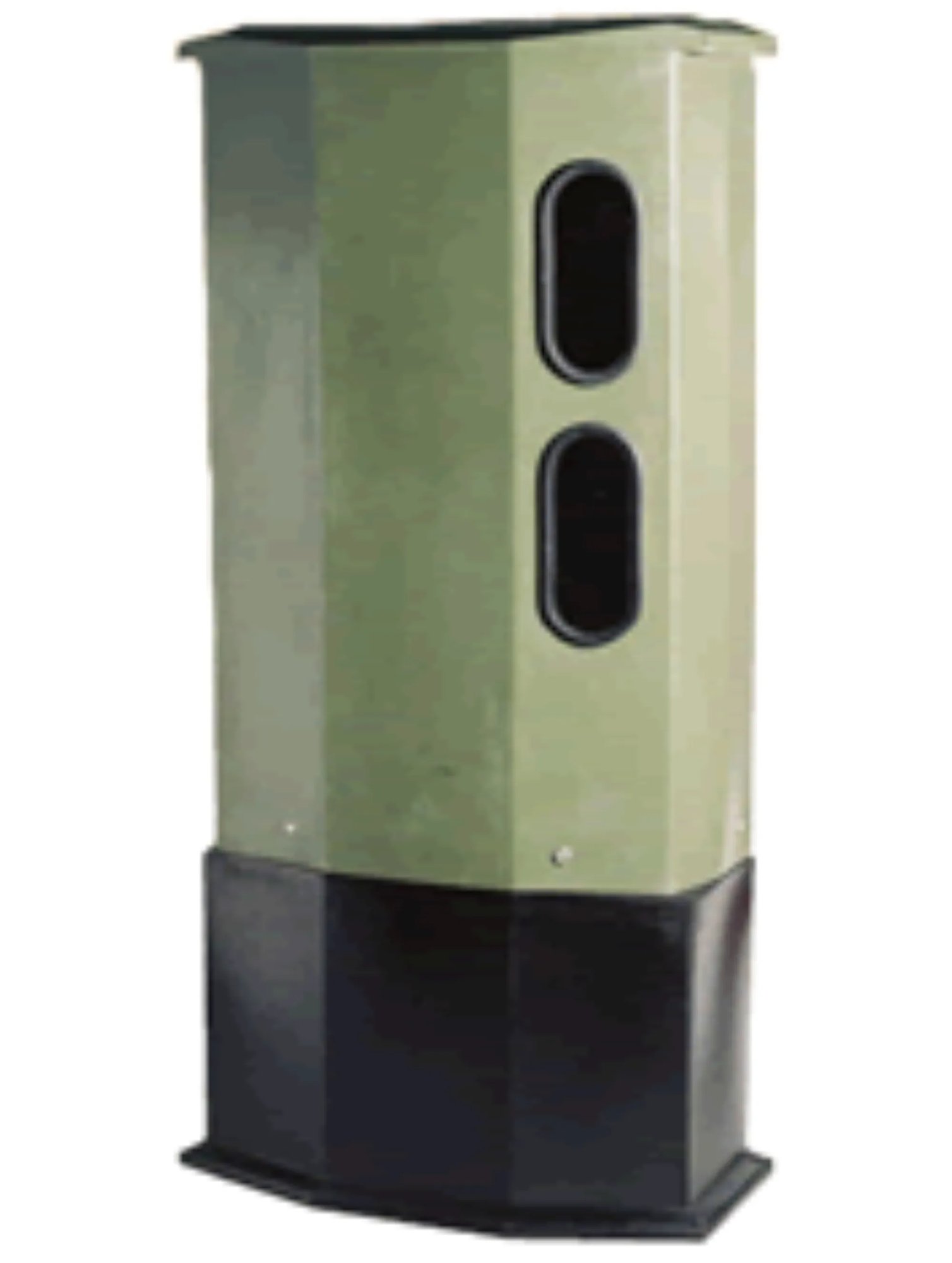

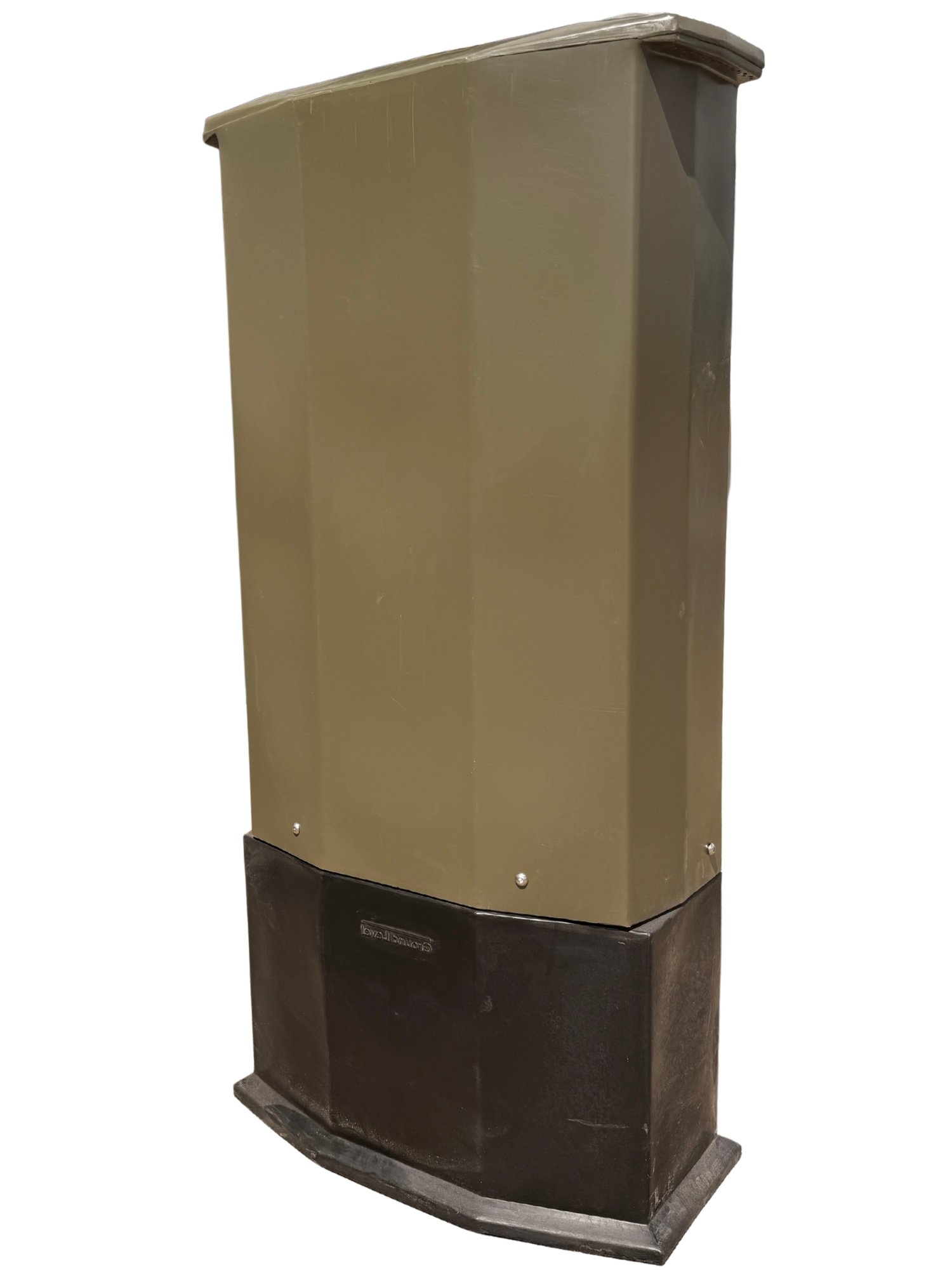

E6000 - 6 Way Pillar

The E6000 has been designed to allow various mounting options. The front panel of the base is removable to allow additional cabling to be fitted.

The uprights are designed to hold a PVC mounting panel (610x815mm) or busbar assembly system.

You can customize the E6000 but having it reduced in height as required or asking for removable fittings on the front of the base to enable easier access to allow additional cabling to be fitted.

MAXIMUM FUSE CAPACITY:

  • Up to 4x 400A 3ph vertical or horizontal disconnects
  • A number of combinations of vertical disconnects, e.g. 4x 250A 3ph DIN with 2x 160A 3ph DIN or 2x 250A 3ph DIN and 4x 160A 3ph DIN 40x 63A fuse carriers

FEATURES:

  • LID SCREWS: 4 x M12x20mm Button Head, Stainless Steel Screws, 5mm
  • The E6000 can be fitted with clear plastic window to allow for the viewing of metering units
  • The overall height of the unit can be reduced by Gyro to suit your needs
  • Can be fitted with locking
  • Other neutral bars can be fitted as required

The standard ventilation is 21 x 4mm diameter holes under the lid’s top lip

Neutral Bar - comes fitted with a 13 way neutral bar, 9 x M12 studs plus 4 M10 studs.
Can be fitted with ABB 400 Amp or 630 Amp Backplates or a Jean Muller 6 way bus bar assembly (JMTE-BBS6) fitted onto 2 custom built bars.

OPTIONAL FEATURES:

  • The E6000 lid can now be replace with the CAB60 cabinet lid, complete with opening and lockable door

See measurements and part numbers

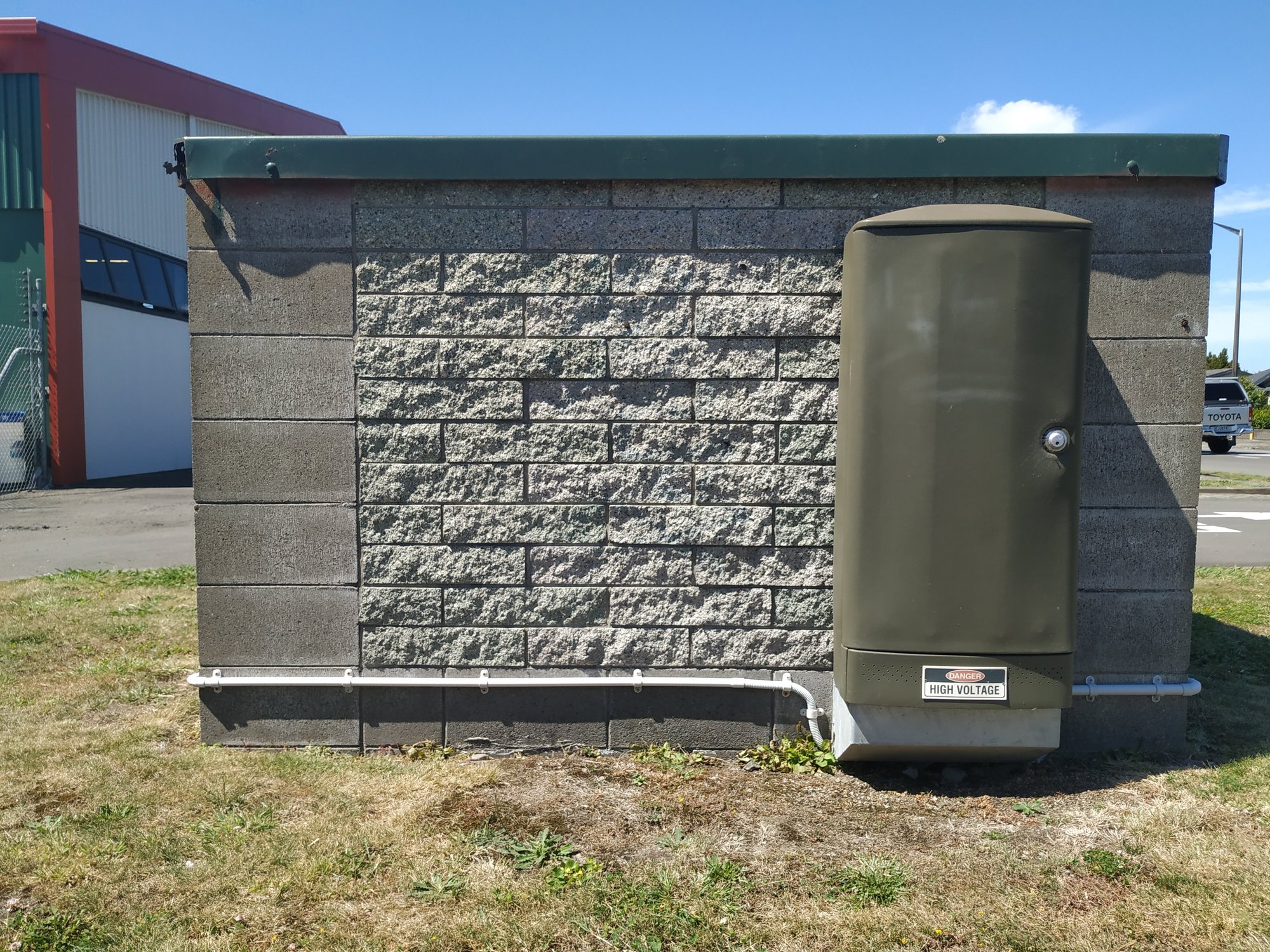

Cab10 _Used in Field aquatec_CHCH City Council -1

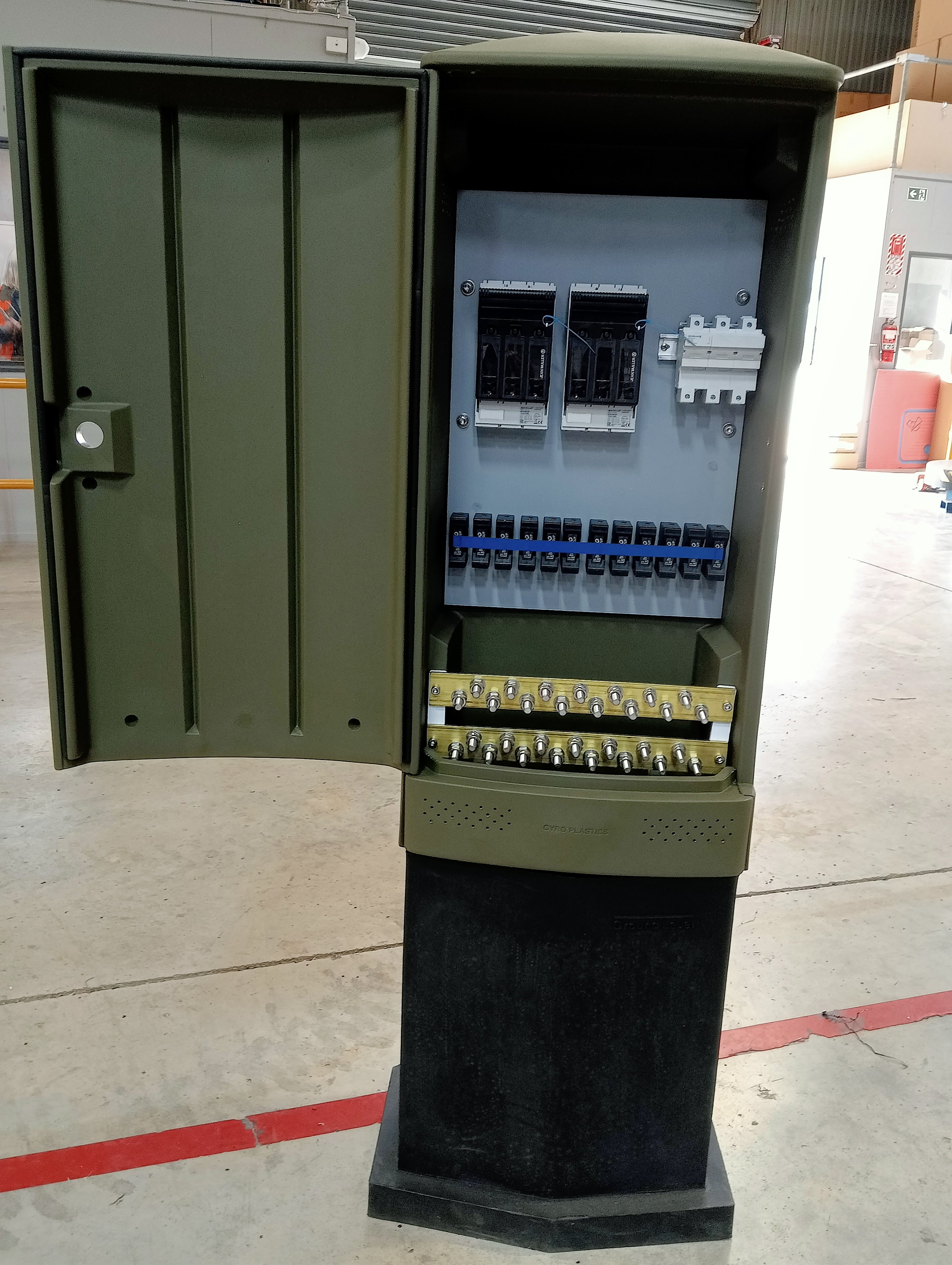

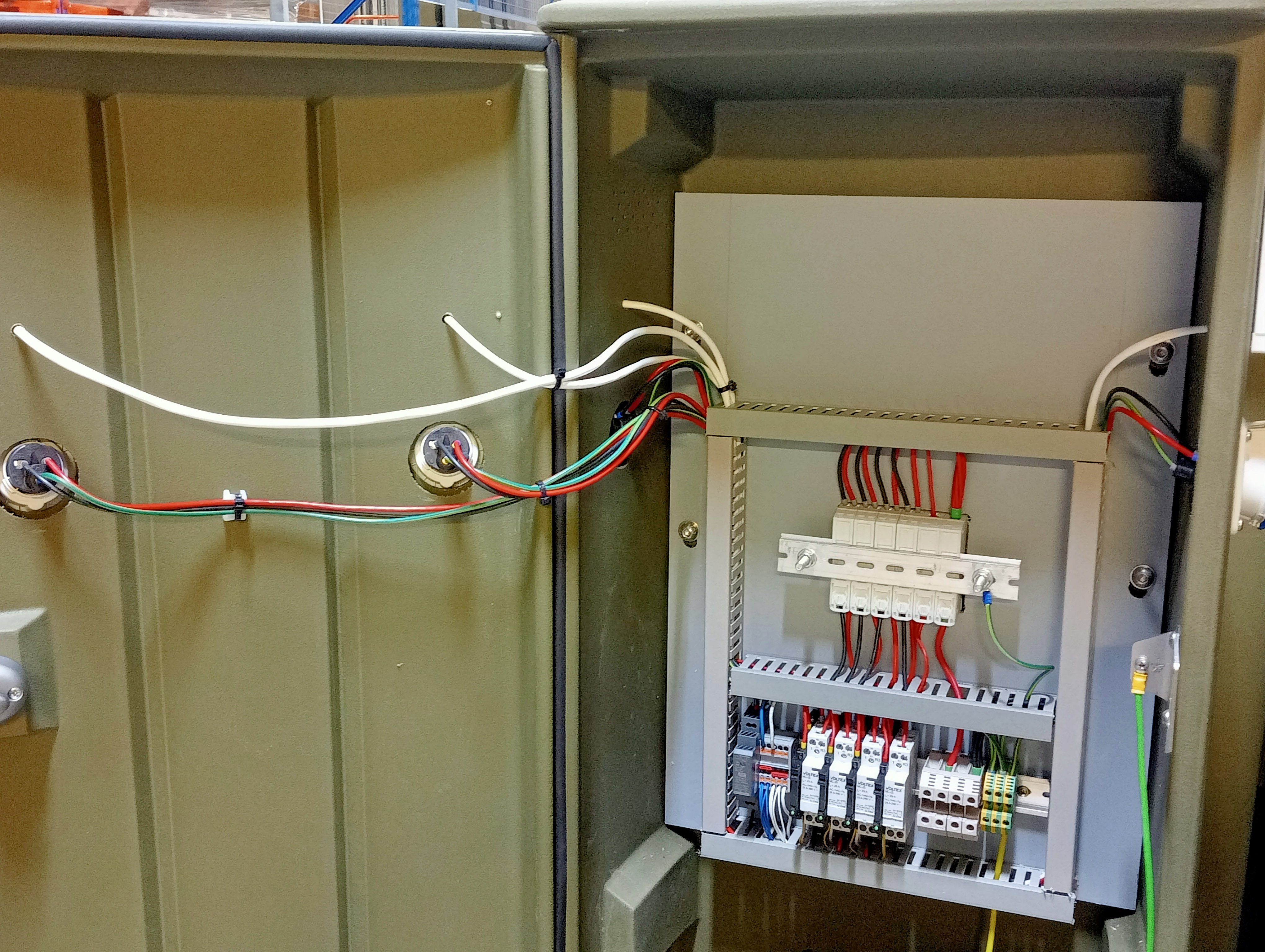

Custom fitouts

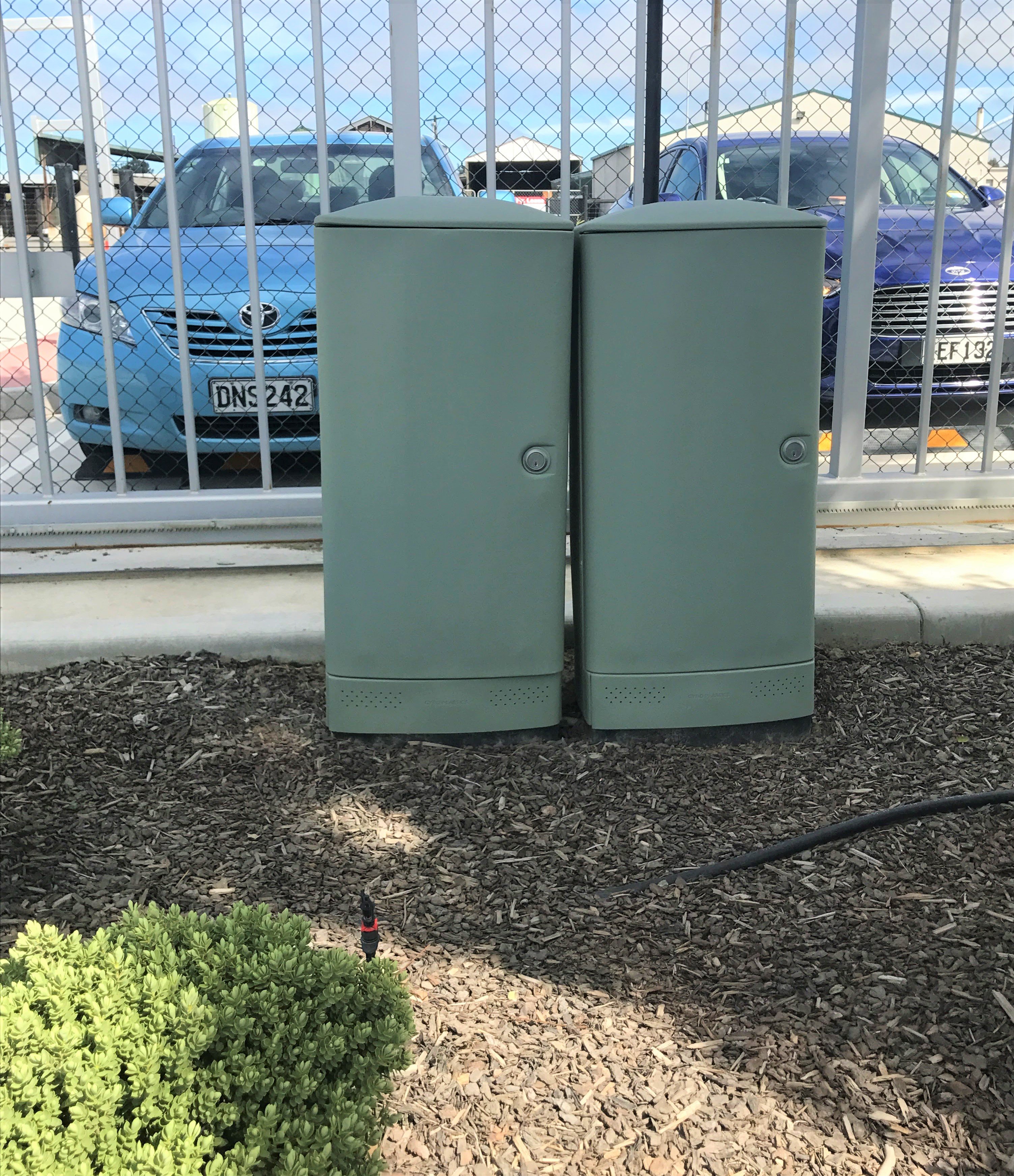

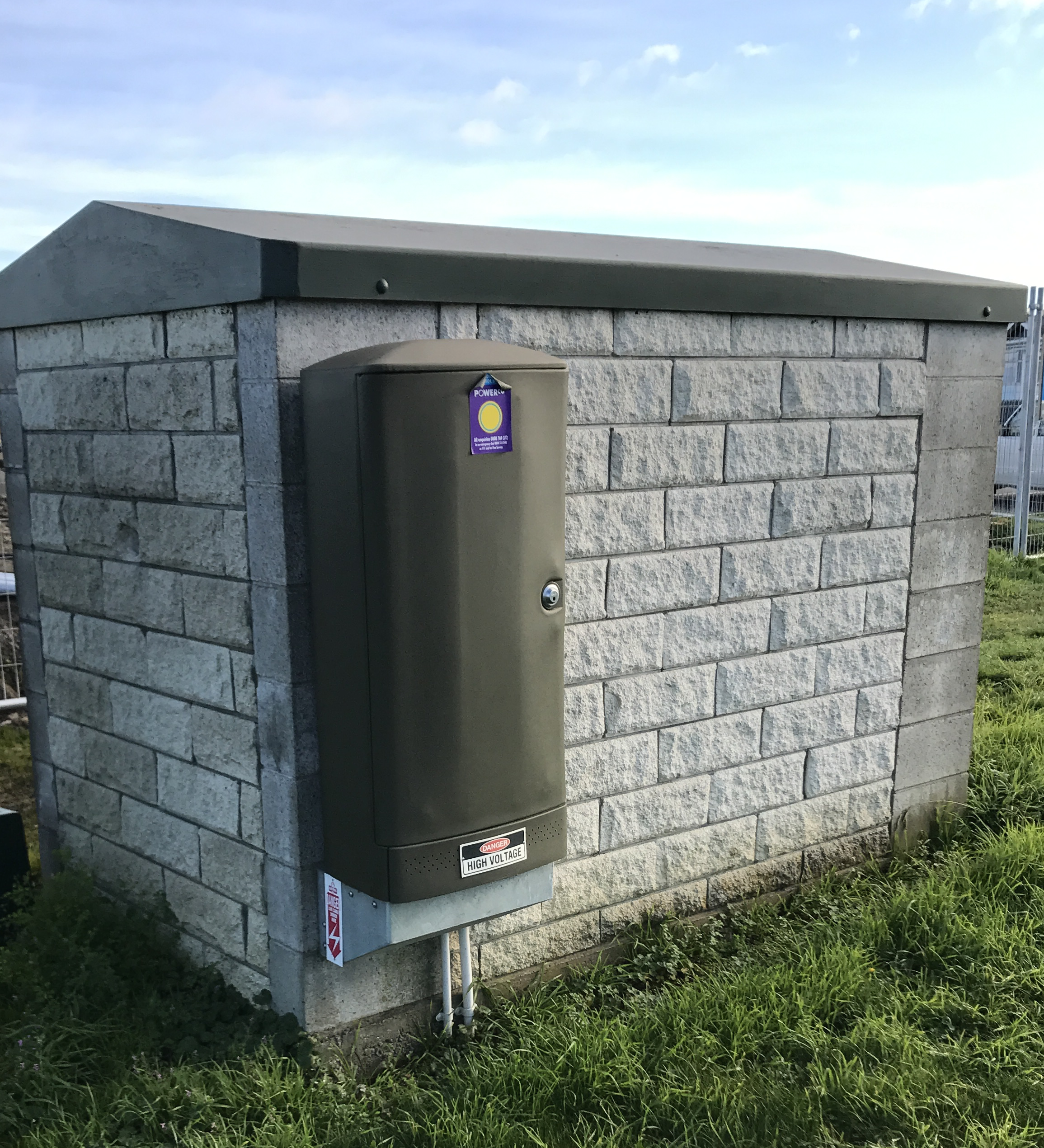

Built for all outdoors installations

Our cabinets are so versatile you can mount almost anything in them with a few modifications which are easy to undertake on site.

Existing installations have used them for:

- gas telemetry

- sewer reticulation

- EV Charger distribution switchboards

- Campground power outlets and switchboarding

- LV monitoring and switchgear
