Power Distribution Pillars

Durable, modular and fit-for purpose
Installation products for businesses in New Zealand

Distribution Pillars that stand the test of time.

With a full concept to manufacture and technical support team, we have the largest footprint in the LV Power Distribution network supplying Pillars, Access Pits, Cabinets to Electric Vehicle Installation products to businesses in New Zealand in addition to Australia & the Pacific.

Durable

Made from Robust UV Stabilised LDPE proven to withstand harsh elements and perform for decades

Sustainable

Fully Recyclable with our GYRO-CYCLED Program, designed to divert waste from landfill and the further use of virgin materials

Safety-First

Non-Conductive materials and all external metals are insulated from live-wire exposure ensure maximum public safety.

Easy Install

All pillars are pre-installed with Neutral Bars and a protective Rubber Apron for maximum technical safety. Ground level markers ensure consistent depth burial.

Our Range

ep1r

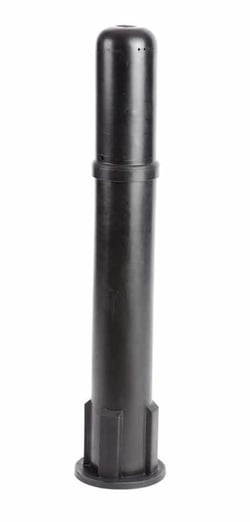

EP1R - 1 Fuse

A round, compact pillar for single-phase applications or as a cover for above ground cable jointing.

MAXIMUM FUSE CAPACITY: 1 x 63A
STANDARD FEATURES:

  • Lid Screws: 2 x M8 x 16 mm Button Head Hex Stainless Steel Screws, 5 mm Drive
  • Comes fitted with a 1 way neutral stud

OPTIONAL FEATURES:

  • Lid Screws: Button Head Torx Post or Hex Post Stainless Steel Screws, 5 mm Drive
  • Can be fitted with a fuse carrier to suit your requirements.

See measurements and part numbers

ep3r

EP3R - 3 Fuse

A stylish, round and most popular compact pillar for one to three phase applications or as a cover for above ground cable jointing.

MAXIMUM FUSE CAPACITY: 3 x 63A
STANDARD FEATURES:

  • Comes fitted with a 4-way neutral and rubber apron for maximum technical safety;
  • Ground level markers ensure consistent depth burial;
  • Lid Screws: 2 x M8x16mm Button Head Hex, Stainless Steel Screws, 5mm Drive;
  • Captive lid screws;

OPTIONAL FEATURES:

  • Lid Screws: Torx Post or Hex Post Stainless Steel Screws;
  • Can be fitted with fuse carriers to suit your requirements;
  • Can be fitted with our rotational locking system.

See measurements and part numbers

EP6R Distribution Pillar NZ

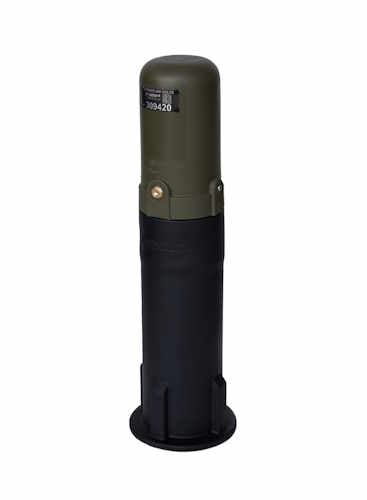

EP6R - 6 Fuse

A stylish alternative for up to 6 fuse applications in the same stylish design as the smaller EP3R.

MAXIMUM FUSE CAPACITY: 6 x 63A
STANDARD FEATURES:

  • Lid Screws: 2 x M8x16mm Button Head Hex, Stainless Steel Screws, 5mm Drive;
  • Supplied fitted with an 8-way neutral bar

OPTIONAL FEATURES:

  • Lid Screws: Torx Post or Hex Post Stainless Steel Screws;
  • Can be fitted with fuse carriers to suit your requirements;
  • Can be fitted with our rotational locking system.

See measurements and part numbers

ep100

EP100 - 8 Fuse

An economic workhorse, the EP100 is a multi-use pillar particularly handy for installations where maximum cable area access is required due to its high ground level clearance.

Can be fitted with fuse carriers, disconnects and a neutral bar to suit your requirements.

MAXIMUM FUSE CAPACITY:8x 63A

STANDARD FEATURES:

  • Lid Screws: 2 x M8 x16mm Button Head, Stainless Steel Screws, 5 mm Drive;
  • Comes fitted with an 8-way neutral and rubber apron for maximum technical safety

See measurements and part numbers

ep101

EP101 - 4 Fuse

An economic, low profile, compact pillar with a 4 fuse capacity, the EP101 is commonly used in simple three phase installations.

MAXIMUM FUSE CAPACITY:4x 63A
STANDARD FEATURES:

  • Lid Screws: 2 x M8x16mm Button Head Hex, Stainless Steel Screws, 5mm Drive;
  • Supplied fitted with a 4-way neutral bar

See measurements and part numbers

ep103

EP103 - 16 Fuse

A fantastic medium capacity pillar, well known for its minimal profile and enhanced by a stylish curved lid.

MAXIMUM FUSE CAPACITY:

  • 16x 63A
  • or 6x63a with 2x 160A 3ph DIN

STANDARD FEATURES:

  • Ground level markers ensure consistent depth burial;
  • Comes fitted with a 8-way neutral and rubber apron for maximum technical safety;
  • Captive lid screws;
  • Lid Screws: 4 x M8x16mm Button Head, Stainless Steel Screws, 5mm Drive (unless a different type is required as per Network Specification);

OPTIONAL FEATURES:

  • Can be fitted with locking;
  • Can be fitted with fuse carriers, disconnects and a neutral bar to suit your requirements.

See measurements and part numbers

ep106

EP106 - 40 Fuse

Our most popular commercial pillar and the largest pillar in our range. Suitable for almost all large scale commercial installations with a huge number of fuse/disconnect configurations.

MAXIMUM FUSE CAPACITY:

  • 40x 63A or multiple 63A with 160A 3ph Horizontal DIN
  • or 12x63A with 2x250A 3ph DIN
  • or 12x63A with a 400A 3ph Horizontal DIN

STANDARD FEATURES:

  • Large cable termination areas provide the technician with easy-access even in complicated installations;
  • Ground level markers ensure consistent depth burial;
  • Captive lid screws;
  • Lid Screws: 4 x M8x16mm Button Head, Stainless Steel Screws, 5mm Drive (Unless a different type is required per Network Specification);
  • Comes fitted with a 10-way neutral and rubber apron for maximum technical safety.

OPTIONAL FEATURES:

  • Can be fitted with fuse carriers and disconnects to suit your requirements;
  • Can be fitted with lock.

See measurements and part numbers

ep107

EP107 - 32 Fuse

An extremely useful commercial pillar with many applications. Has a smaller profile and fuse carrying capacity than the EP106.

MAXIMUM FUSE CAPACITY:

  • 32x 63A or
  • multiple 63A fuse carriers with Disconnect units up to 250A

STANDARD FEATURES:

  • LID SCREWS: 2 x M8x16mm Button Head, Stainless Steel Screws, 5mm Drive (Unless a different type is required per Network Specification);
  •  Comes fitted with a 10-way neutral and rubber apron for maximum technical safety.

OPERATIONAL FEATURES:

  • Can be fitted with fuse carriers and disconnects to suit your requirements.
  • Can be fitted with a lock.

See measurements and part numbers

e2000

E2000 - 6 Fuse

The most popular pillar in the range for domestic installations, taking a maximum of six fuses or two 160A 3ph disconnects, the E2000 is sold all throughout New Zealand. The modular design allows flexibility for future upgrade without the need to remove the ground buried base unit.

MAXIMUM FUSE CAPACITY:

  • 6x 63A FRONT WIRE or
  • 2x 160A3ph DIN 3 phase

STANDARD FEATURES:

  • Comes fitted with a 6-way neutral and rubber apron for maximum technical safety;
  • Ground level markers ensure consistent depth burial;
  • Captive lid screws;

OPTIONAL FEATURES:

  • Can be fitted with our rotational locking system;
  • Can be fitted with fuse carriers, disconnects and a neutral bar to suit your requirements.

See measurements and part numbers

E2300 Power Distribution Pillar NZ

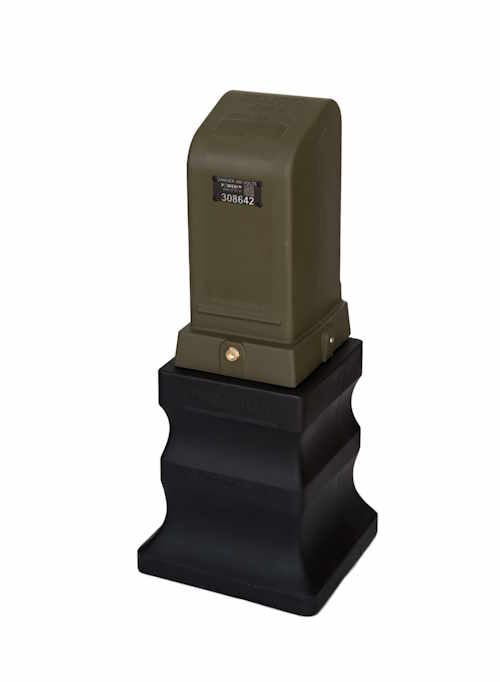

E2300 - 12 Fuse

The most popular larger pillar in the range for domestic installations, taking a maximum of twelve fuses, the E2300 is sold all throughout New Zealand. The modular design allows flexibility for future upgrade without the need to remove the ground buried base unit.

MAXIMUM FUSE CAPACITY:

  • 12x 63A FRONT WIRE or
  • combination of disconnects and fuse carriers

STANDARD FEATURES:

  • Fitted with either a 6-way OR 12-way neutral and rubber apron for maximum technical safety;
  • Ground level markers ensure consistent depth burial;
  • Captive lid screws;

OPTIONAL FEATURES:

  • Can be fitted with our rotational locking system;
  • Can be fitted with fuse carriers, disconnects and a neutral bar to suit your requirements.

See measurements and part numbers

streetlight-ripple-control-pillar

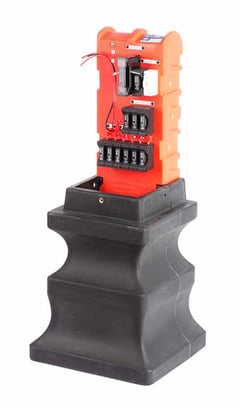

Streetlight Control Pillar

Designed to house ripple control units for street lighting, the Streetlight Control Pillar is supplied completely pre-wired by registered electricians and is ready for installation.

Quick and easy installation. The unit is supplied completely by registered electricians and ready for control unit installation.

Approved for use on the Powerco Network.

See measurements and part numbers

pillar-lids

Need replacement Lids?

All of our distribution pillar lids are available for sale separately including lids from discontinued pillars.

Our lids are made standard in either Black or Khaki. We can make lids in most other colours to order.

Sustainability

Join us to recycle end-of-life pillars, pits & cabinets

From 2019, our customers began joining us in our "divert from landfill" scheme to help us collect any of our product which has been deemed no longer fit for use.

Since then, we have reduced our use of virgin materials by 20%, diverted more than 5000 pillars from landfill and have joined with more than 17 customer sites to continue to recover end-of-life pillars, lids, pits and cabinets to recycle into our GYRO-Cycled program.
